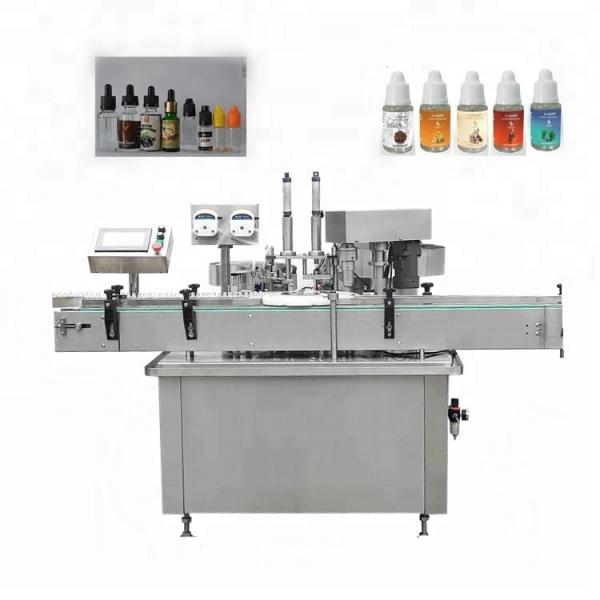

Full Automatic Essential Oil Filling Machine 10ml - 50ml Filling Volume

Place of Origin : Shanghai, China (Mainland)

Brand Name : YB

Certification : CE

Price : US $9,800-12,000 / Sets | 1 Set/Sets 10ml dropper filling machine (Min. Order)

MOQ : 1 Set/Sets 1

Model Number : YB-Y2

Supply Ability : 100

Delivery Time : shipped in 25 days after payments

Packaging Details : wooden case

Type : Filling Machine

Condition : New

Application : Apparel, Chemical, Food, Medical

Packaging Type : Bottles

Packaging Material : Glass

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 2.5KW

Dimension(L*W*H) : L1900 * W1800 * H1600MM

Weight : 500kg

After-sales Service Provided : Engineers available to service machinery overseas

Name : 10ml dropper filling machine

Filling volume : 10-50ml

speed : 15-40bottle/min

filling heads : 2

function : filling, capping, labeling

control : PLC

power : 220v,50/60hz

total voltage : 2.5kw

material : stainless steel

machine dimention : L1900 * W1800 * H600MM

Contact Now

Full Automatic Essential Oil And Eye Drops Filling And Screwing Machine 2-100ml

Usage

Application: This production line is mainly used for Eliquid, electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and other products fully automatic filling production.

Features

1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.
3. Peristaltic pump or piston pump measuring, (if use piston pump, when the filling volume difference is large, the corresponding pump body needs to be replaced), accurate measurement, easy to control.
If use Peristaltic pump, machine can adjust filling volume on the touch screen, and when bottle is not enough, machine will stop filling automatically, avoid waste.
4. Filling system has suction / anti-drip device.
5. Colorful touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.

Technical parameter

YB-Y2 Automatic electric cigarette oil filling /plugging in and capping machine for dropper glass bottle

Applicable specifications	2-100ml (other volume can be customized)
Filling head	2 heads
Production capacity	2 heads: 5-35bottle /min, 4 heads: 10-70 bottles / min (according to filling volume)
Filling accuracy	≤±1%
Capping rate	≥98%
Power supply	1Ph.220V , 50/60 Hz
Total Power	1.5kw
Total dimension	2200 1600 1600mm

Full line Machine component for choose

· Automatic bottles unscramber/feeder/plate machine
· Automatic filling-(plugging)-capping machine
· Automatic labeling machine
· Automatic labels sleeve machine+shrink wrap tunnel
· Automatic bottles collector
· Automatic cartoning machine

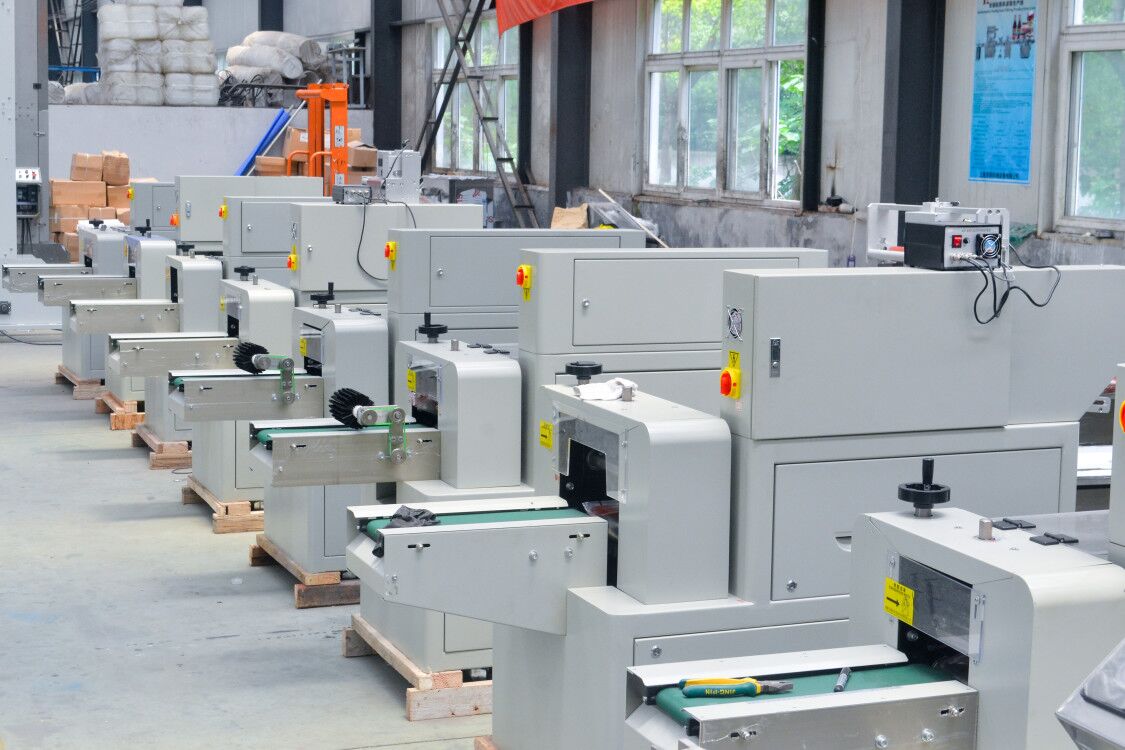

Different filling machines in our factory for different customers for your reference
We have shrink sleeve labeling machine for you to use together with filling machine
We also have cartoning machine for you to put your bottle into the box
Other hot selling filling machine for your reference

Full Automatic Essential Oil Filling Machine 10ml - 50ml Filling Volume
